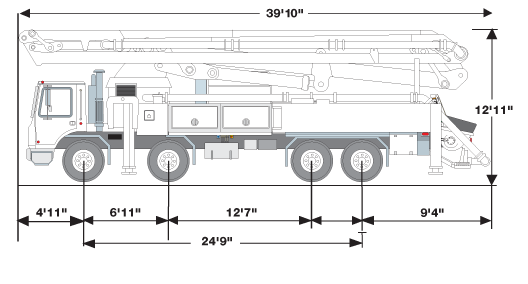

Schwing 46SX
Specifications
| U.S. | Metric | |
| Vertical reach | 150’ | 45.6m |
| Horizontal reach | 137’ | 41.7m |
| Below Grade Reach w/Tip Hose | 111’1” | 33.8m |
| Pipeline Diameter | 5″ | 125mm |
| Boom Type/Sections | Overhead Roll & Fold/4 | |
| Boom Rotation | 380 degrees | |
| 39’6” | 12m | |

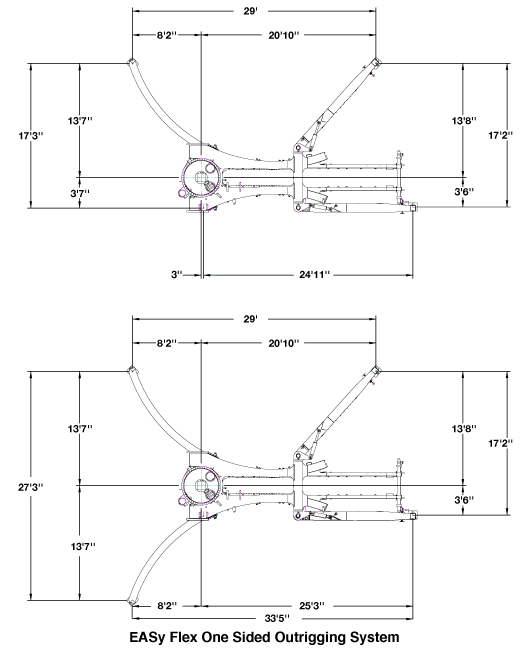

| Outrigger Type – Front | Super X, Hydraulic Extension & Jacking | |
| Outrigger Type – Rear | Hydraulic Slewing & Jacking | |
| Outrigger Soil Pressure w/o Dunnage (front/rear) | 367/353 psi | 25.3/24.3 bar |
| Outrigger Soil Pressure w/ Dunnage (front/rear) | 104/100 psi | 7.2/6.9 bar |
| Outrigger Width, Front | 27’3” | 8.3m |
| Outrigger Width, Rear | 27’3” | 8.3m |
| Outrigger Length | 29ft | 8.8m |
Pump Specifications | ||
| Theor. Concrete Output | 213 cu yds/h | 163 cu m/h |
| Max Pressure on Concrete | 1189 psi | 80 bar |
| Max Strokes Per Minute | 22 | |
| Max Aggregate Size | 2.5 in | 63.5mm |
| Material Cylinder Diameter | 10 in | 254mm |
| Material Cylinder Stroke | 98 in | 2500mm |
| Differential Cylinder Diameter | 4.7 in | 120mm |
| Maximum Oil Flow | 158.5 gal/min | 600 l/m |
| Hydraulic Circuitry Type | MPS | |
| Valve Type | B Rock | |
Features & Benefits
4-Section Overhead Roll and Fold™
The innovative Overhead Roll and Fold™ boom design works so well on bridges, commercial and industrial work. Hundreds of pumpers and concrete contractors have discovered the versatility of a boom with a main section that articulates 180-degrees.
Super X Outriggers
The original and for many contractors the best all-around boom type for fast unfolding, easy cleanout and precision placement.
Generation 3 Pump Kit
Outperforms every other concrete pump on high visibility projects while also placing millions of yards on everyday pours.
Rock Valve™
No other sequencing valve combines lowest cost per yard maintenance costs and ease of rebuilding as the Rock Valve™.
Vector Controls
Valuable operational data at your fingertips to allow monitoring of the pumping process from the remote control box.
