Schwing 58SX


  U.S. Metric

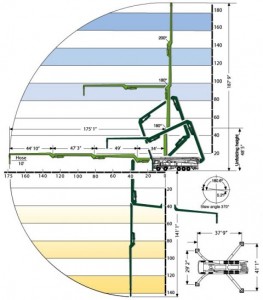

Vertical reach 187’9″ 57.2m
Horizontal reach 175’1″ 53.4m
Below Grade Reach w/Tip Hose 141’1” 43m
Pipeline Diameter 5″ 125mm
Boom Type/Sections Overhead Roll & Fold/4
Boom Rotation 370 degrees
Unfolding Height 48’5” 14.8m
Outrigger Type – Front Super X, Hydraulic Extension & Jacking
Outrigger Type – Rear Hydraulic Slewing & Jacking
Outrigger Soil Pressure w/o Dunnage (front/rear) 157/166 psi 10.8/11.4 bar
Outrigger Soil Pressure w/ Dunnage (front/rear) 51/54 psi 3.5/3.7 bar
Outrigger Width, Front 29’2” 8.9m
Outrigger Width, Rear 41’1” 12.5m

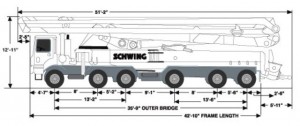

Outrigger Length 37’9” 11.5m
Pump Specifications
Theor. Concrete Output 213 cu yds/h 163 cu m/h
Max Pressure on Concrete 1169 psi 80 bar
Max Strokes Per Minute                                  22
Max Aggregate Size 2.5 in 63.5mm
Material Cylinder Diameter 10 in 254mm
Material Cylinder Stroke 98 in 2500mm
Differential Cylinder Diameter 4.7 in 120mm
Maximum Oil Flow 6 gal/min 22.7 l/m
Hydraulic Circuitry Type                              MPS
Valve Type                            B Rock


Pump Data

Read More on Schwing 58SX Pump

Features & Benefits

4-Section Overhead Roll and Fold™

The innovative Overhead Roll and Fold™ boom design works so well on bridges, commercial and industrial work. Hundreds of pumpers and concrete contractors have discovered the versatility of a boom with a main section that articulates 180-degrees.

Learn More

Optional Detachable Boom

Detachable boom option that allows the boom to be easily removed and mounted hundreds of feet from the pump.

Learn More

Super X Outriggers

The original and for many contractors the best all-around boom type for fast unfolding, easy cleanout and precision placement.

Learn More

Generation 3 Pump Kit

Outperforms every other concrete pump on high visibility projects while also placing millions of yards on everyday pours.

Learn More

Rock Valve™

No other sequencing valve combines lowest cost per yard maintenance costs and ease of rebuilding as the Rock Valve™.

Learn More

Vector Controls

Valuable operational data at your fingertips to allow monitoring of the pumping process from the remote control box.

Learn More

Optional Rear Steer Axle

Get in and out of job sites with confidence thanks to the optional rear steer axle. Schwing’s rear steer option utilizes Mack drive axles which allows the rear steer axle to be covered under the truck warranty.

Learn More
